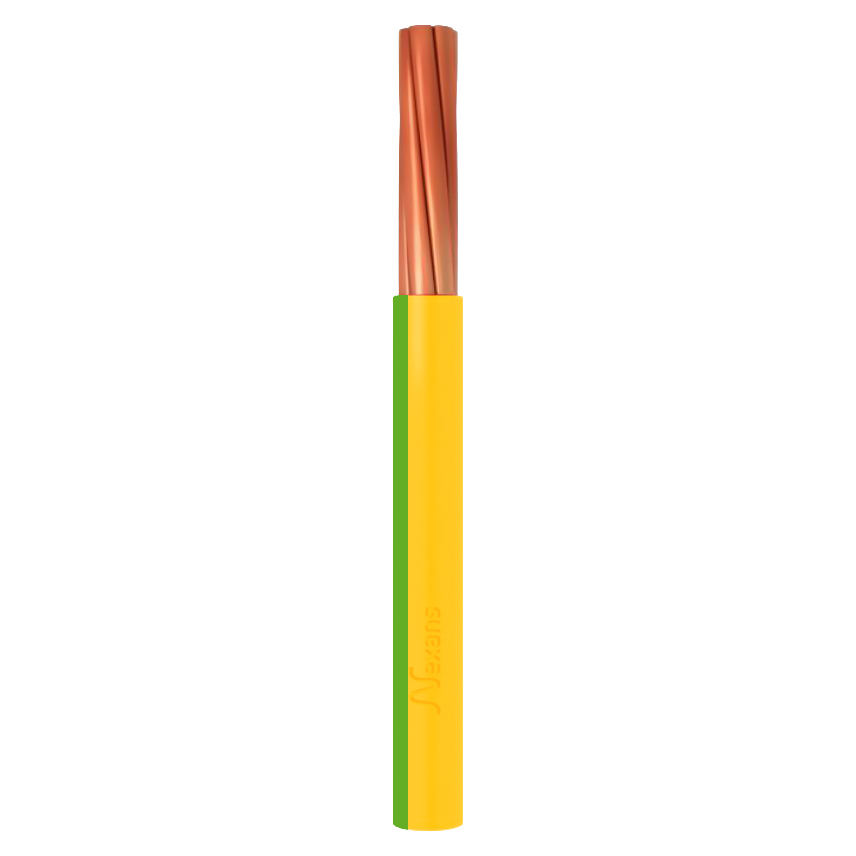

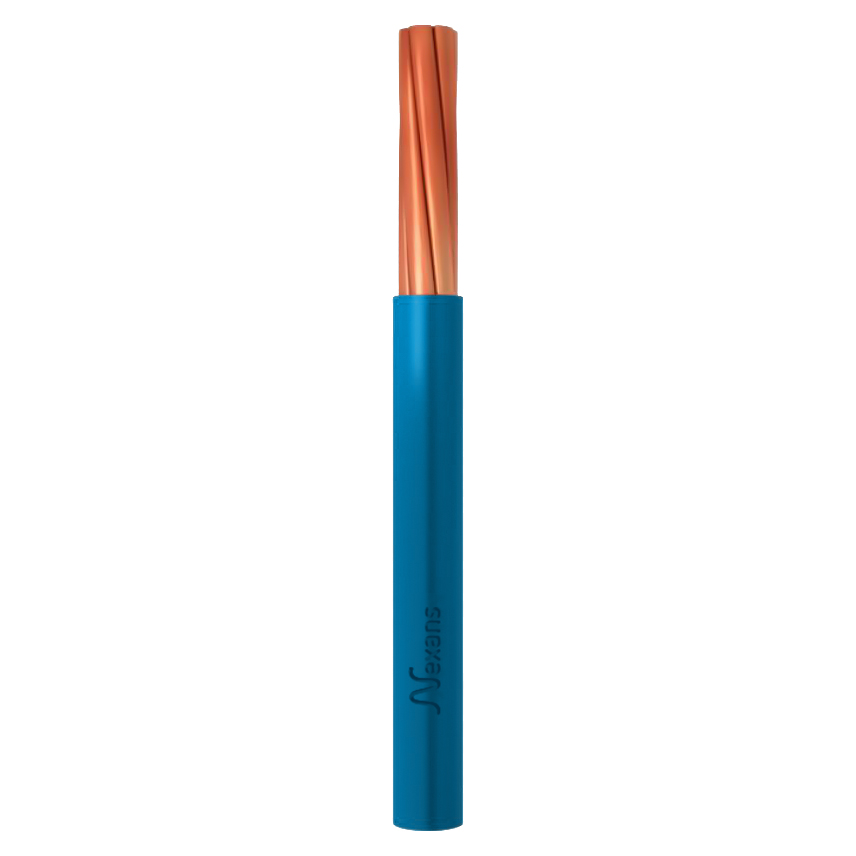

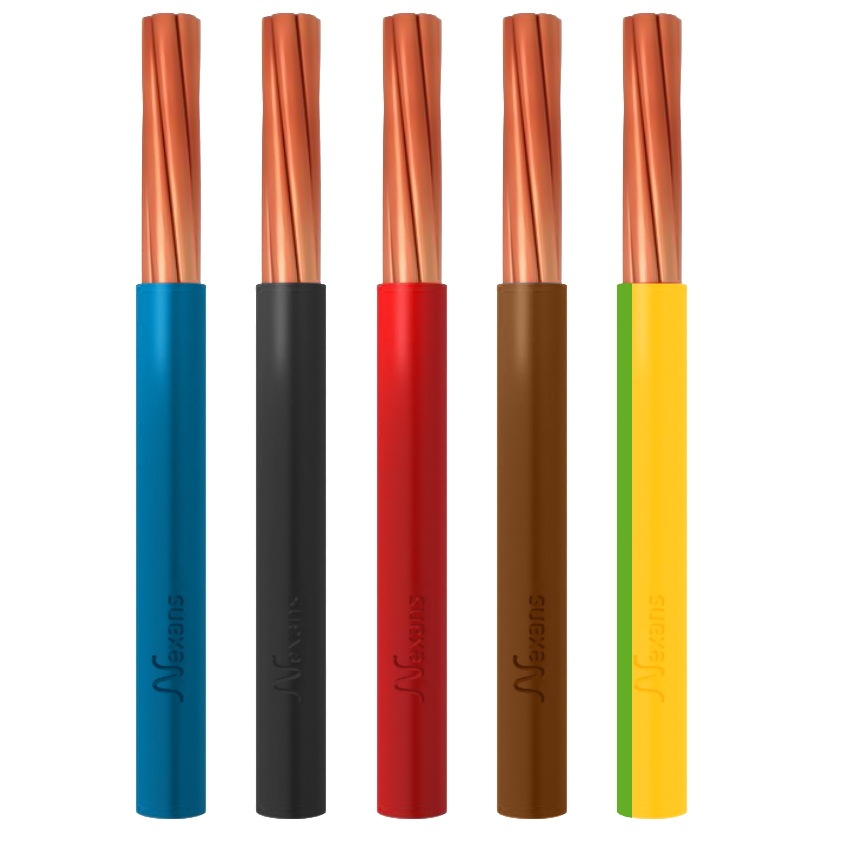

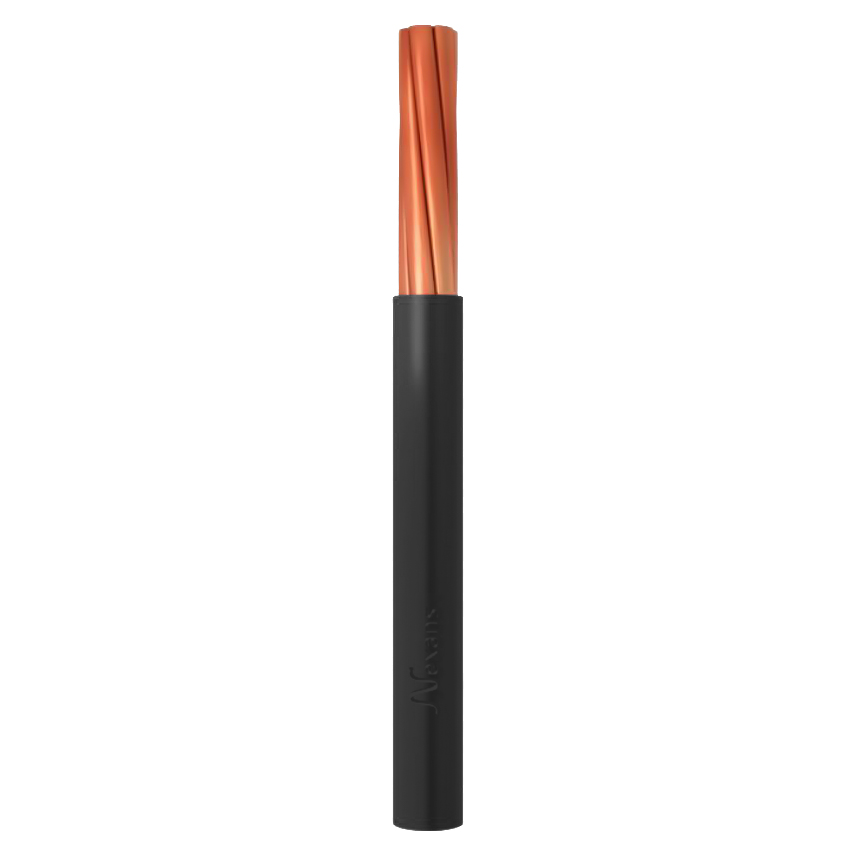

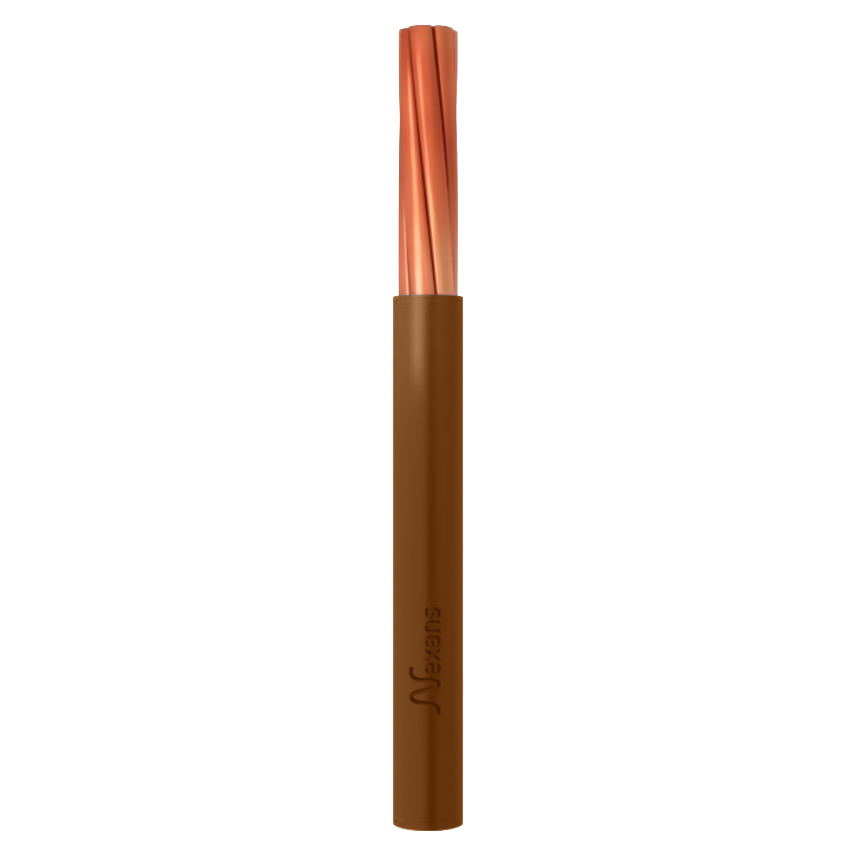

Building Wires - PVC Insulated Single Core Conduit Cable (CU/PVC)
Building Wires - PVC Insulated Single Core Conduit Cable (CU/PVC)
Building wires, rated voltage 450/750V, CU/PVC flame retardant
Read moreNCY 1.5 RS
Nexans ref. NCY 1201509S - Country ref. Ghana
- Packaging: Coil (92m)
- Conductor flexibility: Class 2
- Conductor material: Bare copper stranded
- Approximate weight: 21 kg/km
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal overall diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: - A
NCY 2.5 RS
Nexans ref. NCY 1201510S - Country ref. Ghana
- Packaging: Coil (92m)
- Conductor flexibility: Class 2
- Conductor material: Bare copper stranded
- Approximate weight: 33 kg/km
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 3.6 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 21 A
NCY 4.0 RS
Nexans ref. NCY 1201347S - Country ref. Ghana
- Packaging: Coil (92m)
- Conductor flexibility: Class 2
- Conductor material: Bare copper stranded
- Approximate weight: 49 kg/km
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 4.2 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 28 A
NCY 6.0 RS
Nexans ref. NCY 1201306S - Country ref. Ghana
- Packaging: Coil (92m)
- Conductor flexibility: Stranded class 2
- Conductor material: Bare annealed copper stranded
- Approximate weight: 66 kg/km
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 4.6 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 36 A
NCY 10.0 RS
Nexans ref. NCY 1201005S - Country ref. Ghana
- Packaging: Coil (92m)
- Conductor flexibility: Stranded class 2
- Conductor material: Bare copper stranded
- Approximate weight: 110 kg/km
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal overall diameter: 5.8 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 50 A
NCY 16.0 RS
Nexans ref. NCY 1201006S - Country ref. Ghana
- Packaging: Coil (92m)
- Conductor flexibility: Stranded class 2
- Conductor material: Bare annealed copper stranded
- Approximate weight: 165 kg/km
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal overall diameter: 6.7 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 68 A
NCY 25 RS
Nexans ref. NCY 1201007S - Country ref. Ghana
- Packaging: Coil (100m)
- Conductor flexibility: Class 2
- Conductor material: Bare copper stranded
- Approximate weight: 260.9 kg/km
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal overall diameter: 8.3 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
NCY 35 RS
Nexans ref. NCY 1201008S - Country ref. Ghana
- Packaging: Coil (100m)
- Conductor flexibility: Class 2
- Conductor material: Bare copper stranded
- Approximate weight: 351.02 kg/km
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal overall diameter: 9.3 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
Description
Description
Standards
-
ProductIEC 60227-3
-
TestIEC 60332-1-2
Application
This specification covers single core, PVC insulated cables, intended for internal wiring in dry locations,concealed in conduits.
Design
Conductor
Plain, annealed, electrolytic copper conductors, solid or stranded, complying with the applicable requirements of IEC 60228.
Insulation
PVC based thermoplastic material (Flame retardant)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Insulation
PVC
Usage characteristics
Usage characteristics
Maximum operating temperature
70 °C
Short-circuit max. conductor temperature
160 °C
Resources
Resources
Documentation
ISO 9001_2015 CERT EXP 2ND MAY 2024
pdf — 749.1 kB
ISO 14001_2015 CERT EXP 2ND MAY 2024
pdf — 757.5 kB
ISO 45001_2018 CERT EXP 2ND MAY 2024
pdf — 736.3 kB
Selling & delivery Information
Roll of 100 yards (92m)
