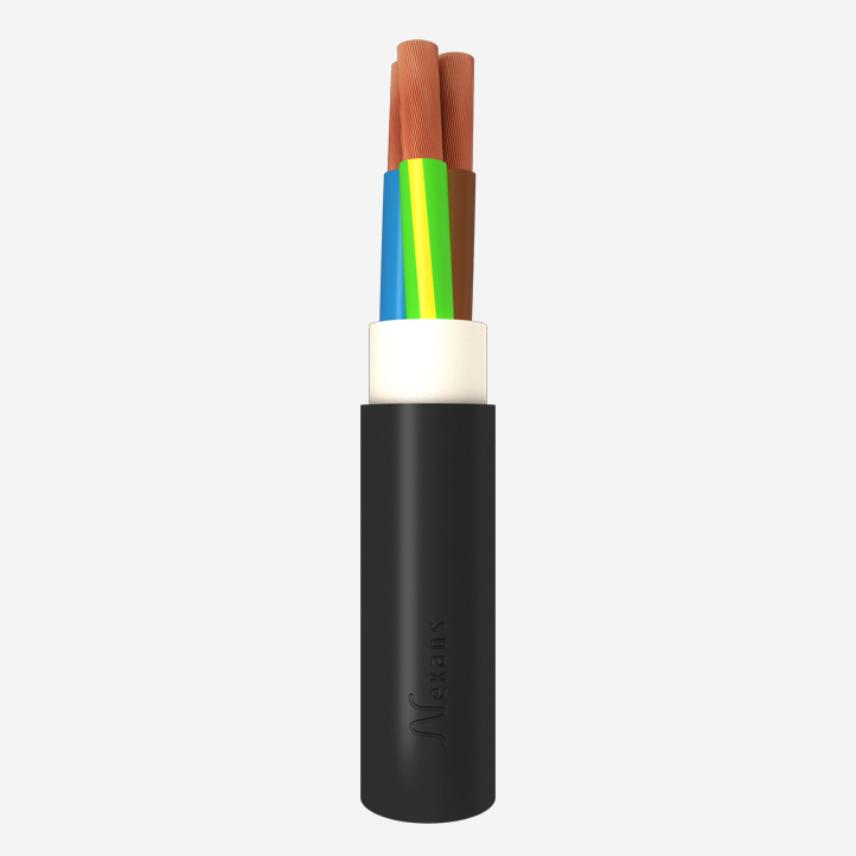

Copper, PVC Insulated, PVC Sheathed Multicore Cable (CU/PVC/PVC)
Copper, PVC Insulated, PVC Sheathed Multicore Cable (CU/PVC/PVC)
PVC insulated PVC sheathed multicore cable. Rated voltage 600/1000 V
Read more3x1.5mm2 PVC insulated, PVC sheathed (NCYY 3 x 1.5 RS)
Nexans ref. NCYY 2003743 - Country ref. Ghana
- Packaging: m
- Conductor shape: Circular
- Approximate weight: 150.9 kg/km
- Core diameter: 3.1 mm
- Nominal conductor diameter: 1.5 mm
- Nominal inner diameter: 8.7 mm
- Nominal overall diameter: 12.3 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
3x2.5mm2 PVC insulated, PVC sheathed (NCYY 3 x 2.5 RS)
Nexans ref. NCYY 2003744 - Country ref. Ghana
- Packaging: m
- Conductor shape: Circular non compacted
- Approximate weight: 247.8 kg/km
- Core diameter: 3.5 mm
- Nominal conductor diameter: 2 mm
- Nominal inner diameter: 9.6 mm
- Nominal overall diameter: 13.2 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
Description
Description
Standards
-
ProductIEC 60228 Class 2 ; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers PVC insulated, PVC sheathed, circular, multicore cables, rated at 0.6/1 KV according to IEC 60502-1, for permanent wiring within buildings, or exposed.
Design
Conductor
Plain, fine, annealed, electrolytic copper conductors, complying with the applicable requirements of IEC 60228.
Insulation
PVC
Sheathing
PVC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2 acc. to IEC 60228
Conductor material
Annealed copper
Inner covering
Extruded
Insulation
PVC
Number of conductors
3
Dimensional characteristics
Dimensional characteristics
Nominal insulation thickness
0.8 mm
Nominal outer sheath thickness
1.8 mm
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Class 2 IEC 60228
Usage characteristics
Usage characteristics
Maximum operating temperature
70 °C
Metric marking
METRIC MARKING
Resources
Resources
Selling & delivery Information
Made in different lengths based on customer's requirement.
