H05VV - F 3G1.5mm2
H05VV - F 3G1.5mm2

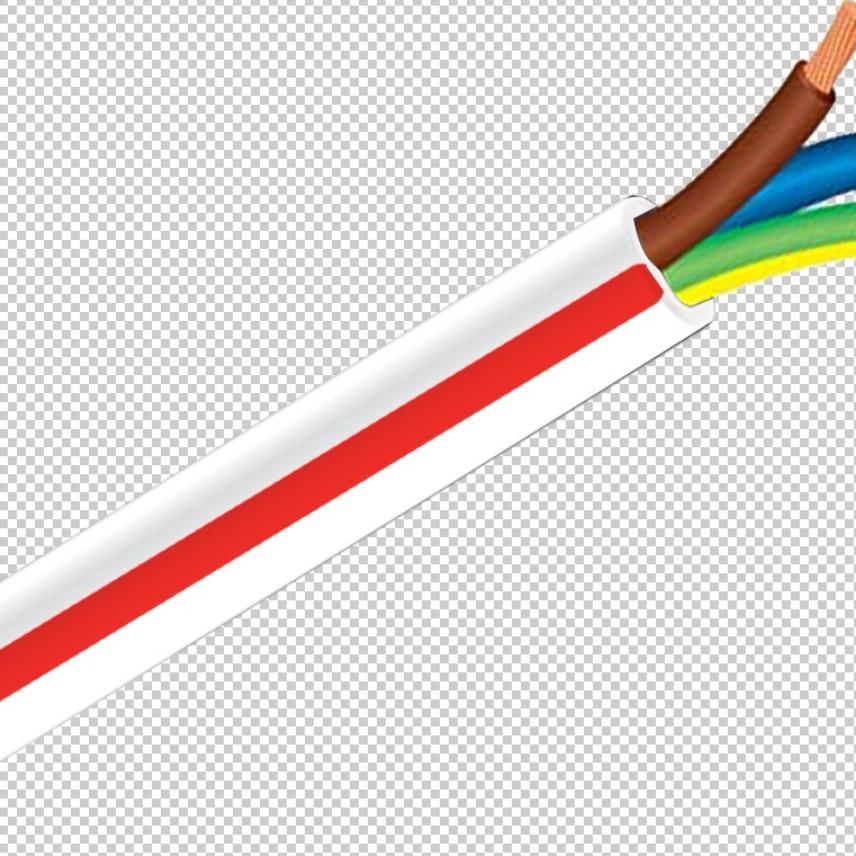

Flexible cable with insulation and outer sheath of PVC. Rated voltage 300/500 V
Read moreDescription
Description
Standards
-
ProductIEC 60227-5; IEC 60228
Application
Nexans H05VV-F cables are designed for households. They can only be used for heating and cooking appliances if there is no risk of radiations or contact with hot parts.
Design
Conductor
Plain, fine, annealed, electrolytic copper conductors, complying with the applicable requirements of IEC 60228.
Insulation
PVC
Sheathing
PVC - Light gray with red stripe
Installation and Advantages
Installation:
Open air
Advantage:
- Very high flexibility
- Easy to strip
- Easy to identify in a pool of cables
- Easy to measure because it come in metric marking
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Marking
1. NEXANS KABELMETAL GHANA LTD - H05VV-F - Nb. of cores G cross section IEC 60227
2. Length Marking - Yards
Roll of 100 yards (91.44m) 2. Roll of 80 yards (73.15m) 3. Drum of 500 yards (457.2m) 4. Customer specified lengths
