Building Cables - Large single core cables
Building Cables - Large single core cables
Building cables consist of large single-core cables, flexible cables, and multicore cables.
Read moreNCY 120 RS
Nexans ref. NCY 120 RS
- Packaging: Cut to length (m)
- Approximate weight: 1138 kg/m
- Cable Diameter: 16.1 mm
- Nominal conductor diameter: 12.8 mm
- Nominal insulation thickness: 1.6 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Perm current rating in air 30°C: 339 A
- Minimum Bend Radius - Installed: 97 mm
NCY 150 RS
Nexans ref. NCY 150 RS
- Packaging: Cut to length (m)
- Approximate weight: 1399 kg/m
- Cable Diameter: 17.8 mm
- Nominal conductor diameter: 14.2 mm
- Nominal insulation thickness: 1.8 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Perm current rating in air 30°C: 390 A
- Minimum Bend Radius - Installed: 107 mm
NCY 185 RS
Nexans ref. NCY 185 RS
- Packaging: Cut to length (m)
- Approximate weight: 1746 kg/m
- Cable Diameter: 19.9 mm
- Nominal conductor diameter: 15.9 mm
- Nominal insulation thickness: 2.2 mm
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Perm current rating in air 30°C: 444 A
- Minimum Bend Radius - Installed: 119 mm
NCY 240 RS
Nexans ref. NCY 240 RS
- Packaging: Cut to length (m)
- Approximate weight: 2284 kg/m
- Cable Diameter: 22.4 mm
- Nominal conductor diameter: 18 mm
- Nominal insulation thickness: 2.2 mm
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Perm current rating in air 30°C: 522 A
- Minimum Bend Radius - Installed: 134 mm
NCY 25 RS
Nexans ref. NCY 25 RS
- Packaging: Coil (100m)
- Approximate weight: 260.9 kg/m
- Cable Diameter: 8.3 mm
- Nominal conductor diameter: 5.9 mm
- Nominal insulation thickness: 1.2 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Perm current rating in air 30°C: 127 A
- Minimum Bend Radius - Installed: 50 mm
NCY 300 RS
Nexans ref. NCY 300 RS
- Packaging: Cut to length (m)
- Approximate weight: 2895 kg/m
- Cable Diameter: 25.2 mm
- Nominal conductor diameter: 20.4 mm
- Nominal insulation thickness: 2.4 mm
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Perm current rating in air 30°C: 595 A
- Minimum Bend Radius - Installed: 151 mm
NCY 35 RS
Nexans ref. NCY 35 RS
- Packaging: Coil (100m)
- Approximate weight: 350 kg/m
- Cable Diameter: 9.3 mm
- Nominal conductor diameter: 6.9 mm
- Nominal insulation thickness: 1.2 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Perm current rating in air 30°C: 157 A
- Minimum Bend Radius - Installed: 56 mm
NCY 400 RS
Nexans ref. NCY 400 RS
- Packaging: Cut to length (m)
- Approximate weight: 3734 kg/m
- Cable Diameter: 28.4 mm
- Nominal conductor diameter: 23.2 mm
- Nominal insulation thickness: 2.6 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Perm current rating in air 30°C: 695 A
- Minimum Bend Radius - Installed: 170 mm
NCY 50 RS
Nexans ref. NCY 50 RS
- Packaging: Cut to length (m)
- Approximate weight: 474 kg/m
- Cable Diameter: 10.9 mm
- Nominal conductor diameter: 8.1 mm
- Nominal insulation thickness: 1.4 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Perm current rating in air 30°C: 190 A
- Minimum Bend Radius - Installed: 65 mm
NCY 70 RS
Nexans ref. NCY 70 RS
- Packaging: Cut to length (m)
- Approximate weight: 658 kg/m
- Cable Diameter: 12.5 mm
- Nominal conductor diameter: 9.7 mm
- Nominal insulation thickness: 1.4 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Perm current rating in air 30°C: 242 A
- Minimum Bend Radius - Installed: 75 mm
NCY 95 RS
Nexans ref. NCY 95 RS
- Packaging: Cut to length (m)
- Approximate weight: 918 kg/m
- Cable Diameter: 14.6 mm
- Nominal conductor diameter: 11.4 mm
- Nominal insulation thickness: 1.6 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Perm current rating in air 30°C: 293 A
- Minimum Bend Radius - Installed: 88 mm
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Overview
Nexans provides a family of reliable products which respect the latest norms and the highest levels of security.
Characteristics
Characteristics

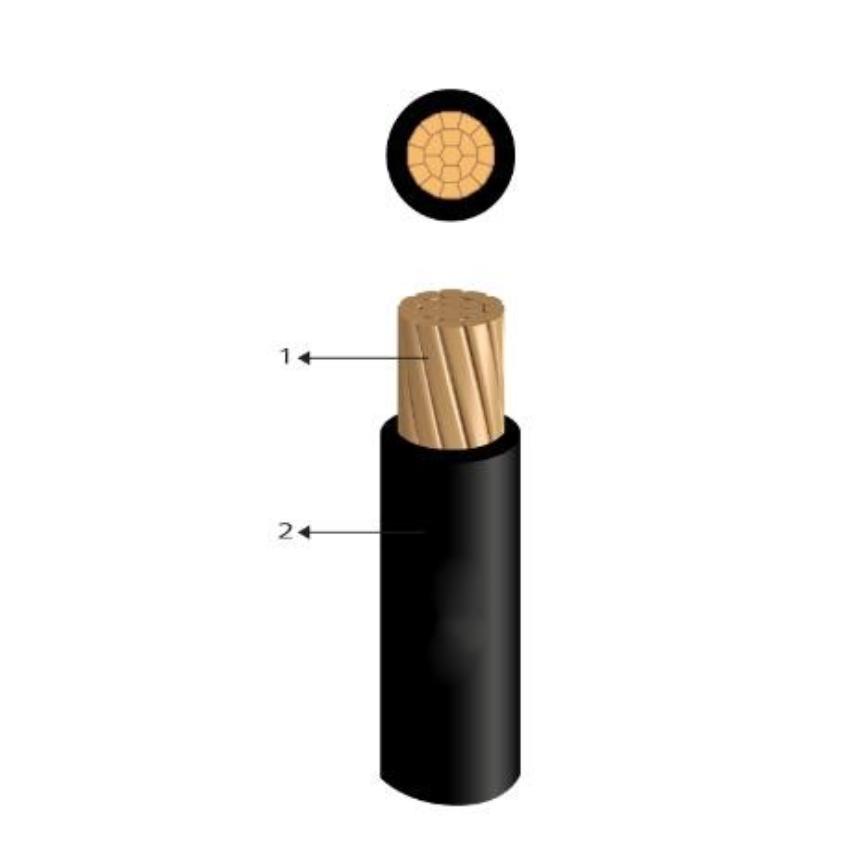

Construction characteristics
Construction characteristics
Conductor flexibility
Class 2 acc. to IEC 60228
Conductor material
Plain annealed copper
Conductor shape
Round, stranded and compacted
Insulation
PVC
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Class 2
Usage characteristics
Usage characteristics
Field of application
LV
Flame retardant
IEC 60332-1-2
Installation type
Indoor
Maximum operating temperature (cables)
70 °C
Metric marking
METRIC MARKING
